sweepSONIK®3
Click on a gallery photo to enlarge
Available in 40, 72, or 104 kHz single frequency generator models.

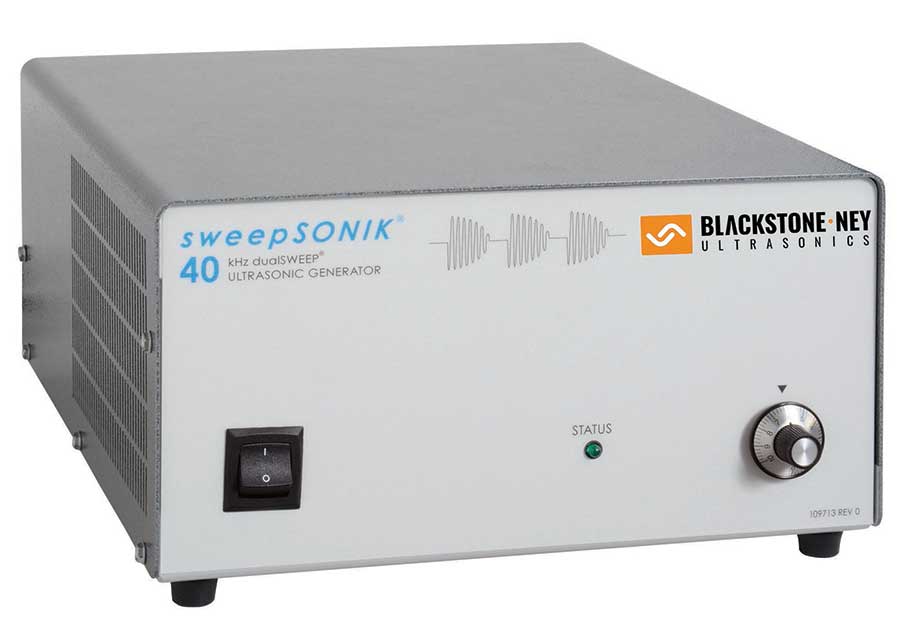

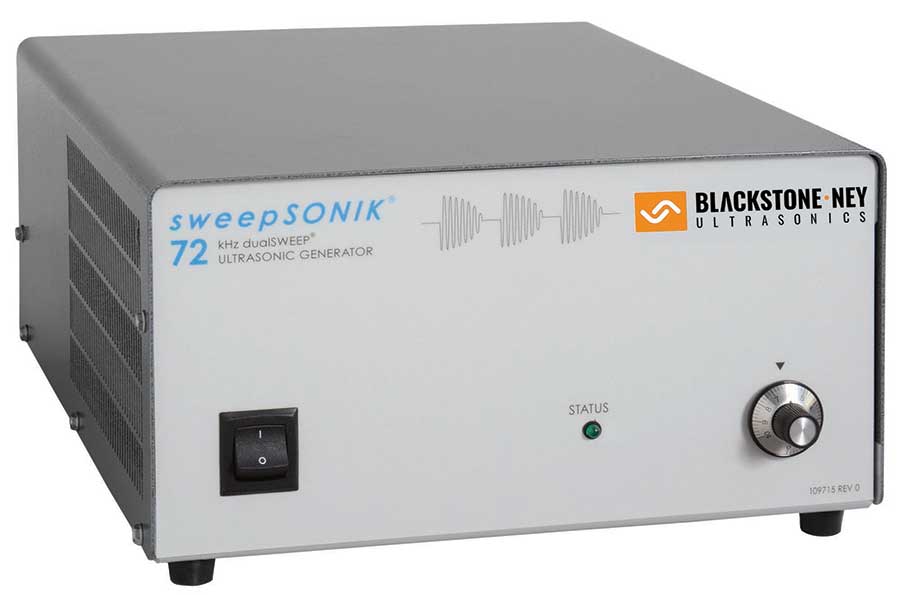

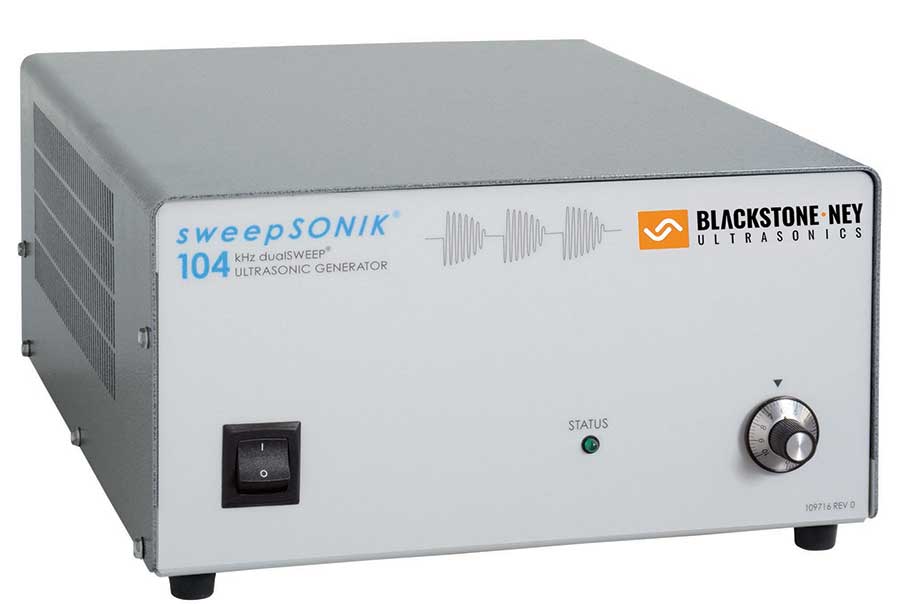

Introducing SweepSONIK®, available in three models: SweepSONIK 40. SweepSONIK72 and SeepSONIK 104, each operating at a single frequency of 40, 72 or 104kHz, respectively.
Risk Free Cleaning : With dualSWEEP technology, the sweep rate dynamically changes between optimum values mitigating the risk of part damage from resonating at a single frequency.
Uniform Cavitation with Rapid Degas sweepSONIK®3 generators excel in cavitate challenging cleaning chemistries, including tough hydrocarbon and semi-aqueous solvents. Digital sweepSONIK technology produces a unique waveform for uniform cavitation across the tank, coupled with industry-leading degreasing speed. This rapid return to normal operation reduces cleaning time and boosts productivity.
High Performance, High Reliability Cleaning sweepSONIK®3 is engineered for superior performance and longevity, backed by an industry leading two-year warranty. All sweepSONIK®3 models feature variable power control and over-temperature indicator lights for operational safety.
Original Equipment Manufacturers can leverage Blackstone-NEY’s advanced ultrasonic technology to enhance particle removal rates to the sub-micron level for their customers’ production process tools. Precision ultrasonic cleaning tanks with electropolished surfaces and coved corners are available. Multiple generators synchronized within a single tank ensure seamless operation and prevent beat frequencies that could damage delicate parts.
- Design Specs
Design Specs
| Center Frequencies: | 40, 72, or 104 kHz |
| Input voltage: | 120, 208, 220 or 240 Volt 1 Ph, 50/60 Hz (depending on generator model) |
| Output power: | 240 to 2,000 Watts (depending on generator model) |
| Sweep Rate: | 3 MHz/second to 4 MHz/second |
| Power Control: | Controls output from 10 to 100% of full power |
| Dimensions: | 11.5″ LR x 15.0″ FB x 6.125″ high |
| Standard Options: | remote ON/OFF feature / self-diagnostics with LED’s to Power, Line Voltage, RF Power and Over Temperature / rear mounted high grade power output connector |
| Designed to CE requirements | |
| Meets FCC rules and regulations | |
